The scope of delivery of a SYTONG HT-66 GERMAN-EDITION includes:

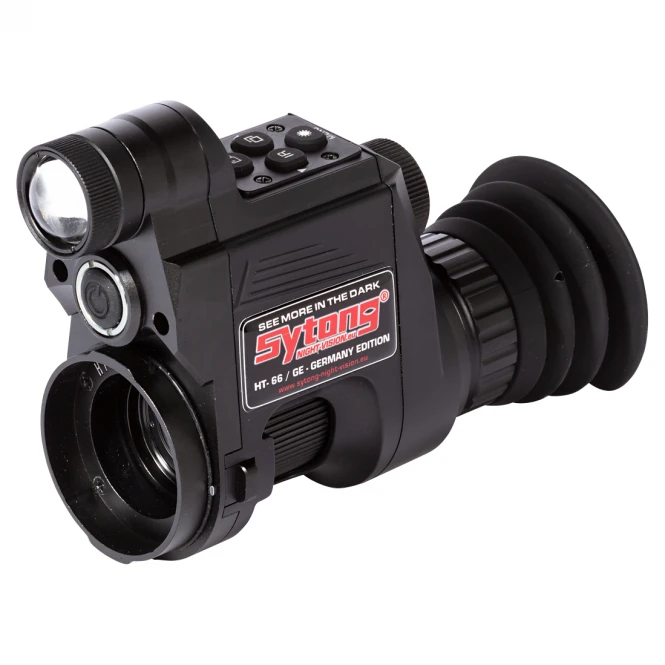

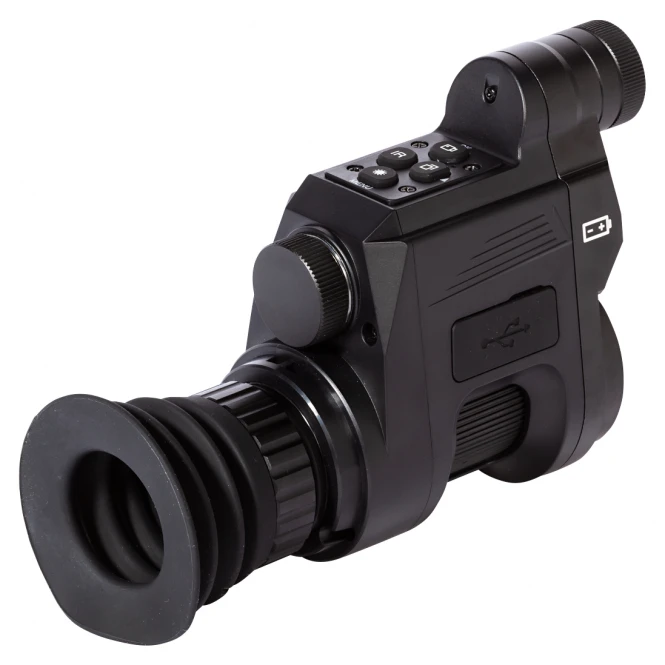

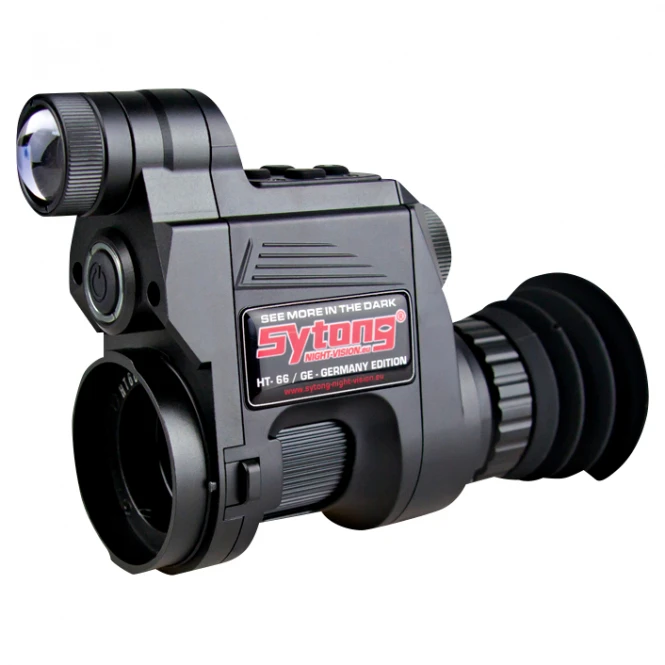

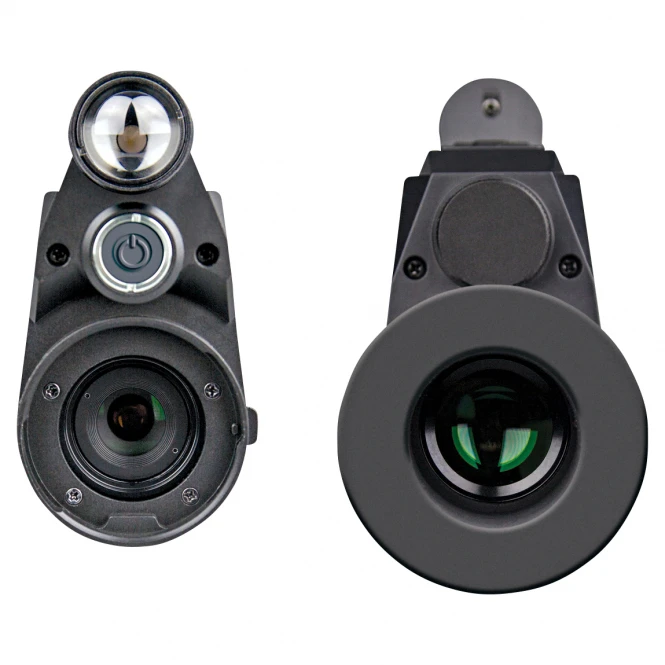

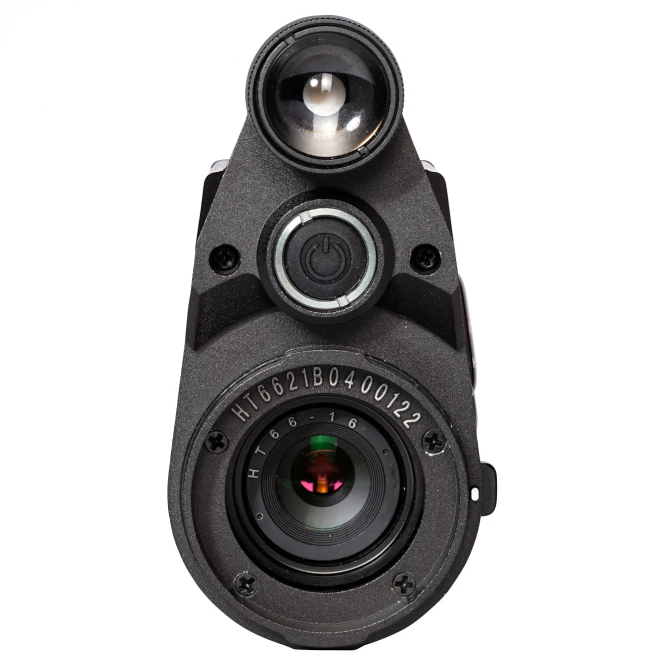

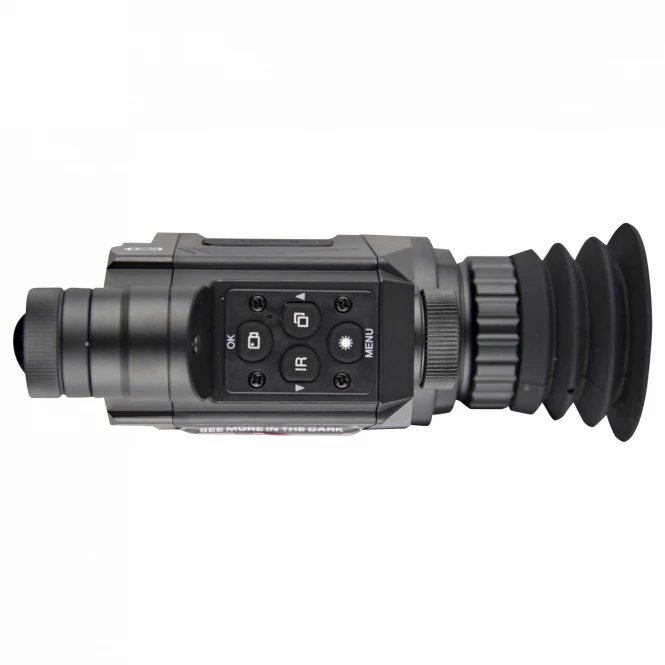

1 piece SYTONG HT-66 / NV 850 DUAL- USE with 16 mm lens and OLED display
1 piece ALU – factory adapter in size 45, 0 mm (note: if required, factory adapter can also be exchanged)
1 piece 18650-Li-Ion standard battery 1200 mAh
1 piece XSTAR USB charger with charging status display for 18650-Li-Ion batteries
1 piece compensating adhesive tape for eyepiece (for diameter adjustment ADAPTER and protection against scratches on the ZF.
1 piece HT-66 cotton equipment storage bag
1 piece USB charging cable / data cable
1 set Allen key for adapter mounting etc.
1 piece cleaning cloth
1 piece steel quick release screw for standard adapter
HT-66 equipment instruction manual in German and English
Warranty and service equipment card
Original sales invoice with 2 years warranty from the date of sale
Technical device data:
Recoil force (shock resistance when fired upon): up to approx. 6000 joules
Optical magnification: 2x
Digital magnification (zoom): 1x – 3.5x
Sony CMOS-SENSOR: Yes
Lens in Ø: 16 mm
Field of view (100 m): approx. 32 m
Focusing range (cm): 3 – infinity
Size LxWxH (mm): 106 x 47 x 97
Net weight: 250 g
Photo resolution (pixels): 2608 x1944 (5 megapixels)
Video resolution (pixels): 1920 x 1080 (Full HD)
Day and night vision capable: Yes
Frame rate (frames per second): 30 fps
Video format: MP4
Video type: AVI
OLED resolution screen (eyepiece): 1024 x 768
Suitable for eyepiece in Ø: 25.0-48.0 mm
Diopter adjustment possible: +5 ~ -5
Power of built-in IR lamp: 5 w
IR- RADIATOR Wavelength: 850 nm
Light levels of infrared illuminator: 3
Infrared illuminator focusable: Yes
Infrared illuminator illumination range: approx. 280 m
Memory card: Micro-SD Max. 32 GB
WLAN (WiFi) interface / App: Yes
Connections: USB Type C
Battery life (depending on battery device load): 4 – 8 hours
Battery type: 18650
Temperature range: -20 °C to +50 °C
Device colour: Black matt
Live image transmission to smartphone or tablet: Yes
Menu selectable in several languages (also in German language ): Yes
A tripod thread is available in the HT-66 device: Yes
Switchable / adjustable red sighting laser: NO not present in the unit
Switchable cross reticle in the unit itself: NO not present in the unit
Legal notice for Germany: The SYTONG HT- 66 GERMAN EDITION DEVICE is approved and permitted for possession by the German authorities.
- Net weight: 250 g
- Dimensions: 10,6 x 4,7 x 9,7 cm
- Infrared spotlight Illumination range: approx. 280 m
- Temperature range: -20 °C to +50 °C
